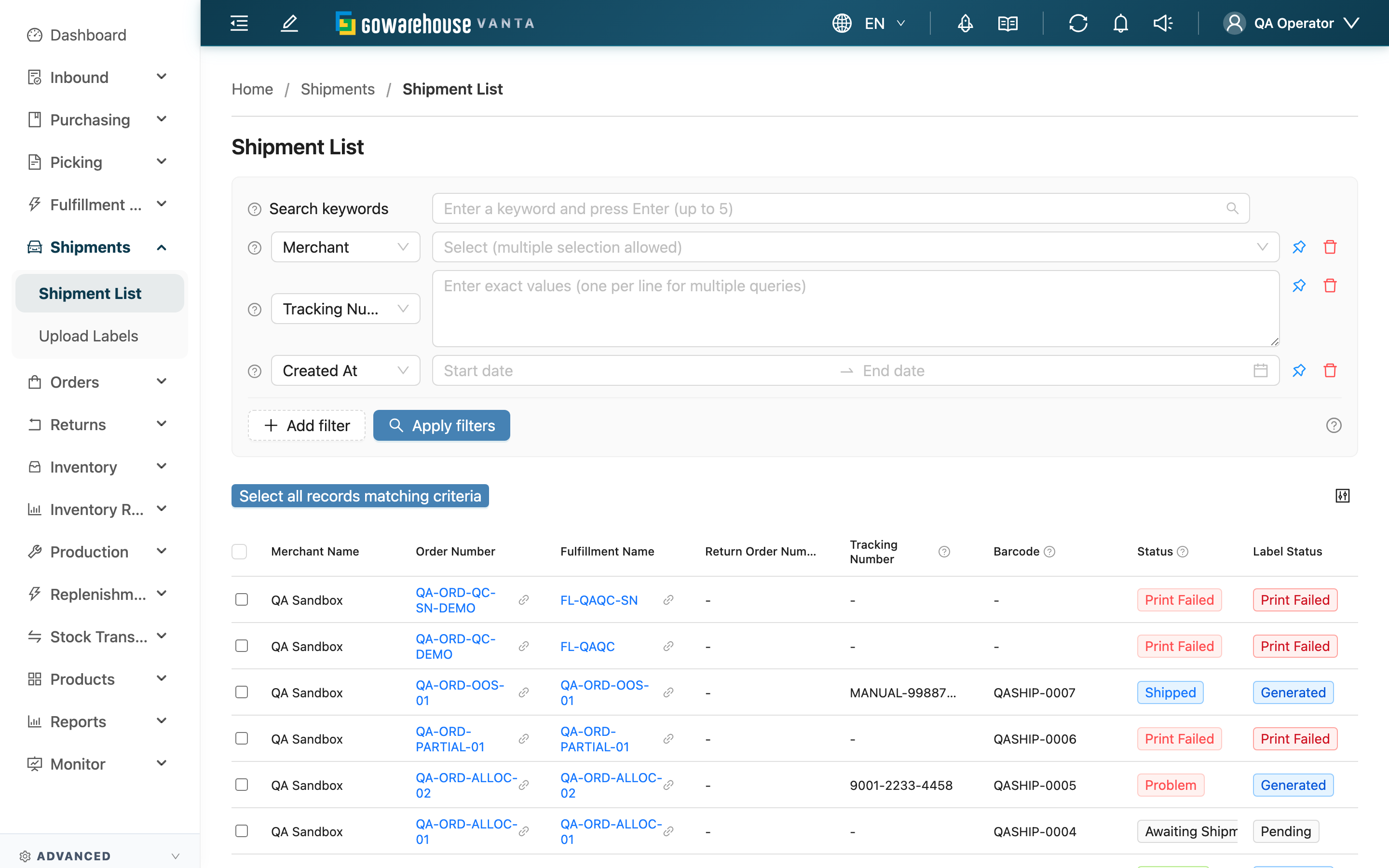

Shipment List
How to Access
"Shipments" → "Shipment List"
Table of Contents
- 1. About This Feature — Overview / How to Access / 5 Use Cases
- 2. Feature Guide — Search / Filter / List / Action Buttons
- 3. FAQ — 11 Questions + Important Notes
- 4. Related Features
1. About This Feature
Quick Jump: Overview | How to Access | Use Cases
1.1 Overview
After goods leave the warehouse, tracking delivery status, checking a specific package's progress, or reviewing what shipped today — all start from the Shipment List. A shipment is the delivery record handed to the logistics provider, holding the package's Tracking Number and delivery status. Search by Tracking Number or Barcode to quickly find a package, or filter by date and status to review shipping activity.
1.2 How to Access
"Shipments" → "Shipment List"
1.3 Use Cases
Quick Links: Problem Shipments | Track Order | Monthly Report | Logistics Reconciliation | Return Handling
Scenario 1: Daily Problem Shipment Processing
Situation: At the start of each workday, you need to handle logistics delivery problems to ensure exceptions are addressed promptly.
How to do it:
- Go to the Shipment List page
- Click "Add filter"
- Select the "Status" filter
- Select "Problem"
- Review each problem shipment's reason
- Contact the 貨主 or recipient to resolve
Result: The list shows all problem shipments. After processing, you can select them and click Export to keep a record.
Scenario 2: Track Shipment Status for a Specific Order
Situation: A 貨主 asks when their order will arrive; you need to check delivery status.
How to do it:
- Go to the Shipment List page
- Enter the Order Number in the search box (e.g., "ORD-2024-001")
- Press Enter to search
- View all shipments for that order
- Confirm the logistics status
Result: The list shows all shipments for that order (including split shipments), allowing you to view the complete logistics status.
Scenario 3: Create a Monthly Shipment Report
Situation: At the end of the month, you need to compile shipment counts and status distribution for the warehouse supervisor.
How to do it:
▸ Set Filter Conditions
- Go to the Shipment List page
- Click "Add filter"
- Select "Created At"
- Set the date range to the current month
▸ Export Data
- Check the header checkbox, then click "Select all records matching criteria" to select all filtered results
- Click "Export"
- Use Excel for pivot analysis
Result: When the export completes, the file downloads automatically; you can also get it from the "Background Tasks" panel via "Download". Use it for statistics by Status, Shipping Type, or 貨主.
Scenario 4: Logistics Reconciliation
Situation: At the end of the month, you need to reconcile with logistics providers, confirming shipment counts and fees.
How to do it:
- Go to the Shipment List page
- Click "Add filter" → Select "Shipping Type" → Select the provider to reconcile
- Click "Add filter" → Select "Created At" → Set the reconciliation period
- Check the header checkbox, then click "Select all records matching criteria"
- Click "Export"
- Compare with the invoice details from the logistics provider
Result: When the export completes, the file downloads automatically; use VLOOKUP to compare it against the provider invoice.
Scenario 5: Track Return Handling
Situation: A package failed delivery and was returned; you need to track returns and notify the 貨主.
How to do it:
- Go to the Shipment List page
- Click "Add filter" → Select "Status" → Select "Return in Transit" or "Returned to Sender"
- Click "Add filter" → Select "Updated At" → Set to the last 7 days
- Review the return reason for each item
- Contact the 貨主 to confirm next steps
Result: The list shows recently returned shipments for sequential processing and recording results.
2. Feature Guide
Quick Jump: Search | Filter | Data List | Action Buttons
2.1 Search
Location: Search box at the top of the page
Searchable Content:
| Searchable Field | Description | Example |
|---|---|---|
| Tracking Number | Tracking code from the logistics provider | Enter "7777-1234-5678" |
| Barcode | For scanner quick lookup | Enter "SHP20240101001" |
| Order Number | Associated order number | Enter "ORD-2024-001" |
| Task Name | Associated fulfillment name | Enter "ORD-2024-001-F1" |
| Return Order Number | Associated return order number | Enter "RO-2024-001" |
How to Use:
- Enter keywords in the search box
- Press Enter
- The list shows matching shipments
💡 Tip: Search uses prefix matching — typing "A01" matches "A01", "A0123", and anything starting with A01. Press Enter, comma, or space to add multiple keywords (up to 5) for a combined search.
2.2 Filter
Location: Click the "Add filter" button
Filter Options
| Filter Field | Description | Usage |
|---|---|---|
| 貨主 | Filter shipments for a specific 貨主 | Can select multiple 貨主 |
| Tracking Number | Filter specific Tracking Number | Can enter multiple Tracking Number |
| Barcode | Filter shipments by Barcode | Can enter multiple Barcode |
| Order Number | Find shipments related to specific orders | Can enter multiple Order Number |
| Task Name | Find shipments related to specific fulfillments | Can enter multiple Task Name |
| Return Order Number | Find shipments related to specific return orders | Can enter multiple Return Order Number |
| Status | Filter shipments by status | Can select multiple statuses |
| Shipping Type | Filter shipments by logistics provider | Can select multiple Shipping Type |
| Created At | View shipments created within a specific time range | Set start and end dates |
| Updated At | View shipments with status updates within a specific time range | Set start and end dates |
Shipment Status Descriptions
| Status | Color | Description |
|---|---|---|
| Awaiting Shipment | Gray | Shipment created, package not yet handed to the logistics provider |
| Print Failed | Red | Label printing failed, needs reprocessing |
| Shipped | Blue | Package handed to the logistics provider |
| In Transit | Blue | Package is being delivered |
| Arrived at Hub | Blue | Package arrived at the logistics hub |
| Arrived at Destination | Green | Package arrived at the delivery point, waiting for pickup/signature |
| Received | Green | Recipient has signed (final status) |
| Problem | Red | Issue occurred during delivery |
| Return in Transit | Red | Provider is returning the package (in transit or at the hub) |
| Returned to Sender | Orange | Recipient didn't pick up; package collected back by the sender |
2.3 Data List
Column Descriptions
| Column | Description | Notes |
|---|---|---|
| Merchant Name | Distinguish shipments by source | Sortable |
| Order Number | Associated original order number | Click to open order details |
| Task Name | Associated fulfillment name | Click to open fulfillment details |
| Return Order Number | Associated return order number | Click to open return order details |
| Tracking Number | Tracking code from the logistics provider | Use it on the provider's website to check delivery progress |
| Barcode | Internal identification code | For scanner quick lookup |
| Status | Color-coded delivery stage | Filter problem shipments |
| Label Status | Shipping label generation progress | See label status descriptions below |
| Shipping Type | Logistics provider used for delivery | e.g., T-Cat Express, HCT Logistics |
| Created At | When the shipment was created | Sortable |
| Updated At | When the shipment was last updated | Sortable |
Label Status Descriptions
| Label Status | Description |
|---|---|
| Pending | Label generation hasn't started |
| Processing | Label is being generated |
| Generated | Label is ready to download and print |
| Print Failed | Label generation failed, needs reprocessing |
Other List Features
- Column Settings: Click the "Configure columns" icon at the top right of the table to customize displayed columns
- Pagination: Adjust items per page (10 / 20 / 30 / 50 / 100 / 200)
2.4 Action Buttons
Batch Operations
| Button | Function | Description |
|---|---|---|
| Export | Export to Excel | Export the selected shipments; at least one must be selected |
Export Content: Tracking Number, Order Number, Quantity, Merchant Name, Recipient Name, Address, Phone, Shipping Type, Status, COD Amount, Mode (forward/reverse logistics), Reference Number, Logistics History, Arrival Date
💡 Tip: To export all records matching your filters, check the header checkbox, then click "Select all records matching criteria". When the export completes, the file downloads automatically; you can also get it from the "Background Tasks" panel via "Download".
📌 Note: The Shipment List has no per-row delete action. To delete or restore a shipment, open the order's detail page from "Order List" and use the shipments section there.
3. FAQ
Quick Jump: FAQ | Important Notes
3.1 FAQ
▪ What is a shipment? How is it different from a Fulfillment?
| Type | Description |
|---|---|
| Fulfillment | The warehouse work order created from a customer order, listing what to ship |
| Shipment | The delivery record handed to the logistics provider, holding the Tracking Number and delivery status |
One Fulfillment may have one or multiple shipments (split packages or reshipment cases). Shipments are used to track delivery status, record the Tracking Number, manage shipping labels, and track recipient signature.
▪ What's the difference between Tracking Number and Barcode?
| Type | Description | Purpose |
|---|---|---|
| Tracking Number | Tracking code from the logistics provider | External tracking, provider website lookup |
| Barcode | System internal identifier | Internal management, scanner quick lookup |
▪ How is the shipment Status updated?
The system syncs delivery status with logistics providers; the status updates automatically as providers report progress. Update frequency depends on the provider. For real-time information, look up the Tracking Number on the provider's website.
▪ What does Label Status mean?
Label Status shows the shipping label generation progress: "Pending" means not started, "Processing" means generating, "Generated" means ready to download and print, and "Print Failed" means generation failed and needs reprocessing.
▪ Why does one order have multiple shipments?
Multiple shipments are created when:
- Split Shipment: Some items are out of stock; available items ship first
- Split Packages: Items exceed one package's limits and are delivered in multiple packages
- Reshipment: First delivery failed and was returned; reshipped after correcting information
▪ How to quickly find a specific shipment?
| Situation | Recommended Method |
|---|---|
| Know the Tracking Number | Search the Tracking Number directly |
| Know the Order Number | Search the Order Number |
| Received a returned package | Scan the package's Barcode with a scanner |
| Find problem shipments | Filter Status by "Problem" |
| Find a specific 貨主's shipments | Filter by 貨主 |
▪ How to export shipment data?
Method 1: Export selected shipments
- Select the shipments to export
- Click "Export"
Method 2: Export all shipments matching your filters
- Set filter conditions
- Check the header checkbox, then click "Select all records matching criteria"
- Click "Export"
When the export completes, the file downloads automatically; you can also get it from the "Background Tasks" panel via "Download". Larger exports take longer; contact technical support if it doesn't finish after a long time.
▪ Can I delete a shipment?
The Shipment List page has no delete action. Open the order's detail page from "Order List", then click "Delete" in the shipments section; deleted shipments can be restored in the same place via "Restore". Shipments whose label is still processing must wait until the label finishes before they can be deleted.
Deleting a shipment does not cancel a package that has already been sent. To cancel a package already with the logistics provider, contact the provider, wait for the package to return, or ask the recipient to refuse delivery.
▪ Why can't I find a shipment?
Check in order:
- Clear all filter conditions first, then search again
- Confirm whether a specific 貨主 filter is set; the shipment may belong to another 貨主
- Verify the Tracking Number or Order Number is correct (search uses prefix matching — start typing from the beginning of the number)
- Confirm the order has been shipped
▪ Delivery Status not updating?
Possible causes and solutions:
- Provider hasn't reported yet: Check again later
- Incorrect Tracking Number: Verify the Tracking Number
- Provider system issues: Check the provider's official website or contact their customer service
▪ Why can't I see some 貨主's shipments?
Your account isn't authorized to view that 貨主's data. The warehouse operations system only shows authorized 貨主 within your organization. This is a system security measure. Contact your system administrator to access more 貨主.
3.2 Important Notes
⚠️ Important Reminders
- 貨主 Management: Shipments are associated with a 貨主; always verify the correct 貨主 before handling exceptions
- Status Tracking: Regularly check "Problem", "Return in Transit", and "Returned to Sender" statuses; handle returns promptly to avoid package accumulation
- Logistics Reconciliation: Export data monthly for provider reconciliation; keep export files as records
- Data Isolation: You can only view authorized 貨主 shipments; contact your system administrator for additional access
4. Related Features
| Feature | Description | Link |
|---|---|---|
| Order List | View orders, ship, and delete or restore shipments | Go |
| Return List | Manage return orders | Go |
| Upload Labels | Batch upload shipping labels | Go |
